RV SOLAR SYSTEMS

The solar panels are the heart of the RV Solar System. The solar panels harvest and transfer the solar energy to the RV electrical system, from where it is distributed to the RV Batteries and all RV Appliances

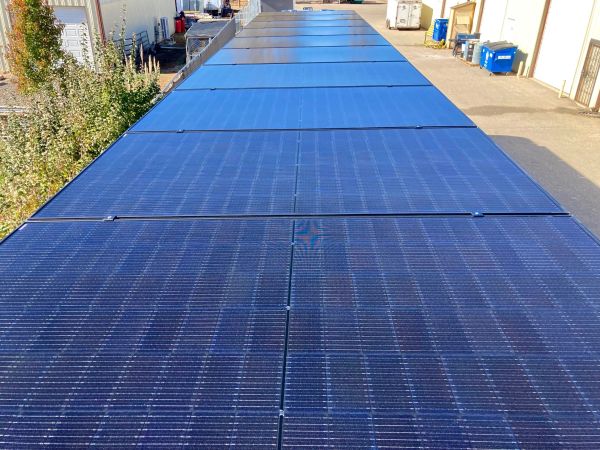

Depending on RV roof configuration and size we can install solar arrays ranging from 100 Watts to 5,000 Watts. Solar panels can be installed in series, parallel and series to parallel connections. We can install panels ranging 100W, 200W, 400W and 500W. Solar panels can be installed directly onto the RV roof surface or be raised on tall brackets to clear roof vents and AC units. We custom design and fabricate raised rail solar support frames for raised solar arrays on Class A RVs.

The solar energy generated by the Solar Panels is transferred to the MPPT Solar Charge Controller where the fluctuating solar power is transformed into a stabile current and voltage suitable for charging of the RV Lithium Batteries.  The RV Lithium Batteries can be charged through multiple energy sources. Such sources include MPPT Solar Charge Controllers, AC/DC Converter chargers and DC/DC Alternator Chargers. The stored Lithium Battery power is then distributed to all 12V DC appliances and all 110V AC appliances via the on board Inverter charger and DC distributer.

A typical RV solar electrical system can include:

• Lithium Batteries
• Solar Charge Controller
• DC/DC Alternator Charger
• Inverter Charger
• Distribution Box with Fuses and Breakers
• Communication Module with Screen or Bluetooth Smartphone App
• Automatic Transfer Switch
• Inverter Bypass

Bellow you will find recommendations for some of our most common solar systems by size  and type of RV. Contact our office for custom quotes on solar array systems larger than 3000W.
